A vacuum pump is a mechanical device used to remove gas from a sealed or partially sealed space, thereby reducing the pressure inside the system.
The basic function sounds simple, but the actual requirements can be very different.
For example, a medical suction device may need stable negative pressure and relatively low noise. A laboratory instrument may require precise vacuum control. An industrial system may prioritize high pumping speed and continuous operation.
Therefore, selecting a vacuum pump is not simply a matter of choosing the pump with the highest vacuum level.
The actual application should be considered together with vacuum pressure, airflow, operating time, noise, vibration, power consumption, installation space, and expected service life.
One of the important applications of compact vacuum pumps is medical suction equipment.
Medical suction devices generate negative pressure to remove liquids, secretions, or other materials from a designated area. They are commonly used in various medical and healthcare environments where controlled suction is required.
For this type of equipment, the vacuum pump needs to provide stable performance while keeping noise and vibration under control.
The pump also needs to work reliably with the overall suction system, including tubing, filters, collection bottles, pressure-control components, and other accessories.
For compact medical equipment, an oil-free vacuum pump can be particularly suitable because the pumping process does not rely on lubricating oil inside the compression chamber.
Oil-Free Vacuum Pumps for Suction Devices
Our oil-free vacuum pumps are designed for applications where clean operation, compact structure, stable vacuum performance, and controlled noise are important.

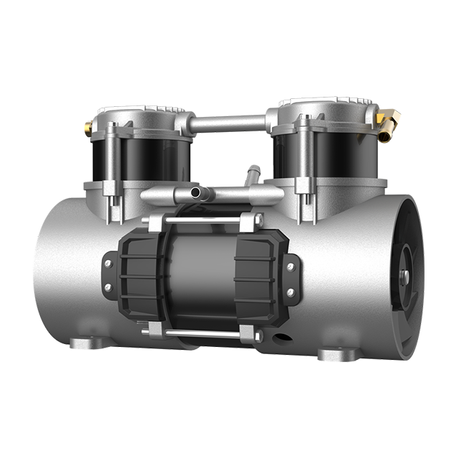

For example, our 160B oil-free vacuum pump is one of our commonly used compact models for small vacuum equipment.
The 160B is equipped with a full-copper motor and is designed for stable operation in compact equipment. Its flow rate reaches ≥24 L/min at zero pressure, while the maximum vacuum can reach -99 kPa under specified test conditions.
The pump operates at approximately 1380 rpm, with noise controlled at ≤55 dB. Its rated power is ≤130 W, and current is ≤0.65 A.
With a weight of approximately 2.8 kg and dimensions of 155 × 96 × 138 mm, the 160B can be integrated into equipment where installation space is limited.
For manufacturers of suction devices, the pump is not an independent component. Its performance needs to be matched with the complete vacuum circuit to achieve the required suction characteristics.
Vacuum pumps are also widely used in laboratories and scientific instruments.
Many laboratory processes require air removal or controlled negative pressure. Vacuum pumps may be used in filtration systems, vacuum drying equipment, sample preparation systems, vacuum ovens, analytical instruments, and other laboratory equipment.
In these applications, stable vacuum performance is often more important than simply achieving the highest possible vacuum.
The pump should maintain relatively stable operating characteristics during the required working cycle. Low vibration can also be important because excessive vibration may affect sensitive instruments or measurements.
For compact laboratory equipment, an oil-free pump can reduce concerns related to oil contamination and simplify system design.
Vacuum filtration is another common application.
Compared with ordinary gravity filtration, vacuum filtration uses negative pressure to accelerate the movement of liquid through a filter medium.
The vacuum pump creates the pressure difference required for the filtration process.
The required vacuum level and airflow depend on the filtration equipment and material being processed. Therefore, the pump should be selected according to the actual system requirements rather than based only on its maximum vacuum specification.
Compact oil-free vacuum pumps are often suitable for small filtration systems because they can provide negative pressure without requiring conventional oil lubrication.
Vacuum drying equipment uses reduced pressure to help remove moisture or volatile substances from materials.
By lowering the pressure inside the chamber, the evaporation characteristics of the material can be changed, allowing drying to take place under controlled conditions.
Vacuum pumps used in drying systems may need to operate for relatively long periods.
This makes reliability, thermal management, continuous operating capability, and resistance to wear important factors during pump selection.
For small and medium-sized vacuum drying equipment, the physical size and power consumption of the pump can also affect the overall equipment design.
Vacuum packaging is another familiar application of vacuum technology.
During vacuum packaging, air is removed from the packaging space before sealing. This helps reduce the amount of air surrounding the packaged product.
Vacuum pumps used in packaging equipment need to provide sufficient airflow to remove air efficiently within the required cycle time.
Different packaging machines may have very different requirements. Small tabletop equipment may prioritize compact dimensions and low noise, while industrial packaging machines may require higher pumping capacity and continuous operation.
Vacuum technology is widely used in food-processing equipment.
Vacuum pumps may be used in vacuum packaging, vacuum cooling, vacuum drying, degassing, evaporation, and other processes.
Different processes require different combinations of vacuum level and pumping speed.
For food-related equipment, the cleanliness of the pumping system can also be an important consideration. In applications where oil contamination is undesirable, oil-free vacuum pump technology provides an alternative to traditional oil-lubricated designs.
Vacuum pumps can also be found in printing and paper-processing machinery.
Vacuum systems may be used for paper feeding, material positioning, sheet separation, adsorption, and handling.
In these applications, the pump often needs to provide stable airflow and negative pressure while operating repeatedly throughout the working cycle.
Because printing and paper-processing equipment can contain multiple moving components, controlling vibration and noise can also contribute to overall equipment performance.
Vacuum technology is commonly used in automated material handling.
Vacuum suction can be used to pick up, hold, move, or position components and materials.
For example, vacuum systems can be integrated into automated production lines, robotic handling systems, electronic component equipment, and packaging machinery.
The pump selection depends on the weight and surface characteristics of the object being handled, the required response time, leakage conditions, and the desired vacuum level.
In automated equipment, compact dimensions and fast response can be particularly valuable because the vacuum system needs to fit into a limited installation space.
Vacuum pumps can also be used in environmental equipment and gas-handling systems.
Depending on the system design, they may be used to extract air or gas, maintain negative pressure, or support controlled gas movement.
In these applications, continuous operation and long-term reliability can become more important than peak vacuum performance.
The pump must also be selected according to the characteristics of the gas being handled. Factors such as temperature, humidity, corrosiveness, and particulate content may affect pump selection and service life.
Traditional oil-lubricated vacuum pumps rely on lubricating oil to reduce friction and wear.
However, certain equipment cannot tolerate the risk of oil contamination.
This is one reason oil-free vacuum pump technology has become increasingly important in compact equipment.
An oil-free pump eliminates the need for lubricating oil in the pumping chamber, helping reduce the possibility of oil entering the pumped gas path.
This characteristic can be particularly useful in medical, laboratory, food-processing, and other applications where clean gas handling is important.
However, “oil-free” does not mean that the pump requires no maintenance or that every oil-free pump is suitable for every application.
Pump structure, sealing components, valve design, cooling conditions, operating cycle, and system matching all influence actual performance and service life.
For compact vacuum equipment, our 160B oil-free vacuum pump provides a combination of vacuum performance, airflow, compact dimensions, and relatively low operating noise.
The model uses a full-copper motor and has a rated speed of approximately 1380 rpm.
Under specified test conditions, the pump provides:
* Flow rate: ≥24 L/min at zero pressure
* Maximum vacuum: up to -99 kPa
* Noise: ≤55 dB
* Power: ≤130 W
* Current: ≤0.65 A
* Rated speed: 1380 rpm
* Weight: approximately 2.8 kg
* Dimensions: 155 × 96 × 138 mm
These characteristics make the 160B suitable for compact vacuum equipment where space, noise, airflow, and vacuum performance all need to be considered together.
It can be considered for applications such as medical suction equipment, laboratory instruments, compact vacuum systems, and other OEM equipment requiring a small oil-free vacuum source.
For equipment manufacturers, choosing a vacuum pump is only the first step.
The pump needs to work together with the entire vacuum system.
For example, the actual suction performance can be affected by tubing diameter, tubing length, filters, valves, collection bottles, leakage points, pressure-control components, and the internal structure of the equipment.
This means that a pump with a higher maximum vacuum does not necessarily produce better overall equipment performance.
A successful vacuum system needs the right balance between vacuum level, airflow, response speed, noise, vibration, power consumption, temperature, and service life.
This is why pump and system matching is an important part of OEM development.
Different equipment manufacturers have different requirements.
Some customers need a compact pump for portable equipment. Others may require higher airflow, higher vacuum, a specific motor voltage, or a customized installation structure.
As a vacuum pump manufacturer, we can work with customers during the development process to evaluate the required vacuum performance, airflow, motor configuration, dimensions, noise requirements, and installation conditions.
The goal is not simply to provide a standard pump, but to find a pump configuration that works effectively within the customer’s complete equipment system.
For OEM projects, early pump selection and system testing can also help reduce problems during later mass production.
Before selecting a vacuum pump, equipment manufacturers should consider several basic questions.
First, what vacuum level does the equipment actually require?
Second, what airflow or pumping speed is needed at the working pressure?
Third, will the pump operate continuously or intermittently?
Fourth, what are the acceptable limits for noise and vibration?
Fifth, how much installation space is available?
Finally, what are the requirements for power consumption, cooling, operating temperature, reliability, and service life?
Answering these questions first makes it easier to select the appropriate vacuum pump.
Maximum vacuum alone should never be the only selection criterion.
Vacuum pumps are used in far more applications than traditional industrial vacuum systems.
They support medical suction equipment, laboratory instruments, vacuum filtration, vacuum drying, packaging machinery, food processing, printing equipment, automated material handling, and many other systems.
As equipment becomes smaller, quieter, cleaner, and more integrated, the requirements placed on vacuum pumps are also becoming more demanding.
Oil-free vacuum pump technology offers an effective solution for many compact systems where clean operation and controlled maintenance are important.
Our 160B oil-free vacuum pump combines a compact structure, full-copper motor, stable airflow, high vacuum capability, and controlled operating noise, making it a practical option for manufacturers developing compact suction and vacuum equipment.
For OEM applications, the most important consideration is not simply the pump itself, but how well the pump matches the complete equipment system.
The right vacuum pump should deliver the required vacuum performance while fitting the equipment’s space, noise, power, thermal, and reliability requirements.
What is a vacuum pump mainly used for?
A vacuum pump is mainly used to remove gas from a closed or partially closed space and create negative pressure. Common applications include medical suction equipment, laboratory instruments, vacuum filtration, vacuum drying, vacuum packaging, and industrial automation.
What is an oil-free vacuum pump?
Are vacuum pumps used in medical suction devices?
What is the maximum vacuum of the 160B vacuum pump?
Can the 160B be used for OEM equipment?
