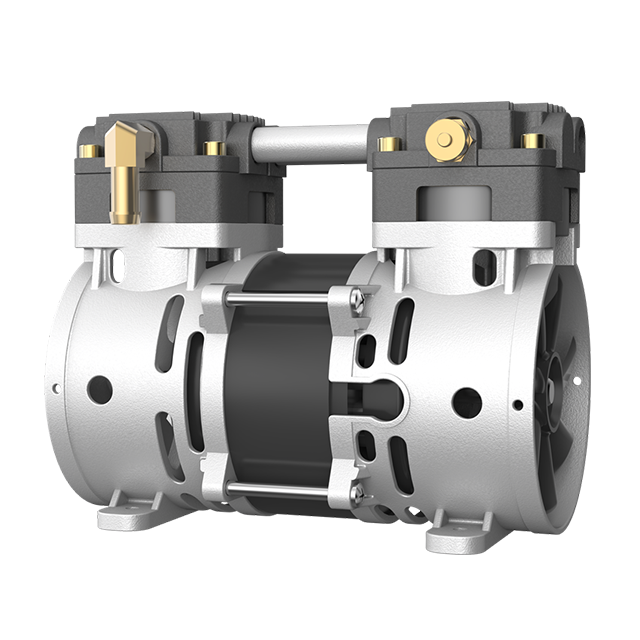

Medical device product managers and design engineers face incredibly high stakes during product development. Selecting pneumatic components is not just about moving air. It involves ensuring patient safety, minimizing acoustic fatigue, and adhering strictly to rigorous biocompatibility protocols. Hydrocarbon contamination poses a severe threat in clinical environments. Oil particles can easily ruin delicate respiratory circuits, compromise surgical tools, or harm vulnerable patients. Engineers must navigate complex variables to prevent premature failures in the field.
This article provides a comprehensive technical evaluation framework. You will learn how to match pneumatic specifications and form factors to specific medical applications. We will explore airflow dynamics, pressure curves, and complex integration challenges. By the end of this guide, you will understand exactly how to choose the right pump technology. You can confidently meet both critical clinical needs and strict regulatory standards.
Purity is Non-Negotiable: Oil-free designs are mandatory to meet ISO 8573-1 Class 0 standards for a clean compressed air source in patient-contact applications.
Spec Matching Prevents Failure: Balancing continuous Airflow (LPM) and Peak Pressure (PSI/Bar) is critical for preventing thermal overload in enclosed medical devices.
Integration Drives Design: Selecting an OEM compressor head requires early assessment of vibration isolation, voltage configurations, and footprint constraints.
Supplier Vetting Matters: Partnering with an oil-free medical pump supplier requires evaluating their ISO 13485 compliance and supply chain resilience.
Eliminating hydrocarbon contamination remains the most absolute requirement in medical device engineering. Respiratory support systems, surgical instruments, and diagnostic equipment all interact directly with human physiology. Any trace of lubricating oil in the air stream introduces severe risks. Hydrocarbons degrade sensitive synthetic materials inside patient tubing. They also pose severe inhalation hazards for compromised lungs. You must completely remove oil from the pneumatic equation. Relying on downstream filtration is simply too risky for life-supporting devices.
Regulatory bodies strictly define the expectations for medical-grade air. ISO 8573-1 Class 0 is the golden standard you must target. This classification demands a truly clean compressed air source. It certifies the total absence of liquid oil, oil aerosol, and oil vapor in the output stream. The National Fire Protection Association (NFPA) further dictates strict standards for air purity in medical gas systems. Compliance requires using specialized self-lubricating materials inside the pump chamber. Engineers cannot cut corners here.
Specifying inappropriate pneumatic systems carries heavy consequences. Regulatory rejection often occurs when auditors discover potential contamination vectors during the 510(k) or CE mark approval process. Beyond compliance failures, incorrect specifications cause premature device failure. Oil mist coats internal sensors, causing false readings and subsequent software faults. Worst of all, compromised air directly threatens patient safety. You mitigate these risks by specifying dedicated oil-free technologies from day one.
Best Practice: Always request third-party ISO 8573-1 Class 0 testing certificates from your pump manufacturer before finalizing any design.
Determining the exact pneumatic output requirement requires a deep understanding of your device's clinical application. Engineers often miscalculate the delicate balance between airflow and pressure. This miscalculation leads to systems running too hot, too loud, or failing prematurely. Proper sizing of a medical device compressor pump begins with defining the exact operational duty cycle.
You must differentiate between continuous and intermittent operation. Oxygen concentrators and mechanical ventilators demand continuous, 24/7 operation. These systems generate massive amounts of internal heat. They require pumps engineered specifically for a 100% duty cycle. Conversely, surgical aspiration tools or blood pressure monitors operate intermittently. Intermittent use allows the pump to cool down between cycles. You can often specify smaller, lighter pumps for these applications.
Airflow requirements, measured in Liters Per Minute (LPM), vary drastically across medical fields. A robust respiratory equipment air compressor often requires 10 to 50 LPM depending on patient demand and system leaks. Dental fluid delivery systems might only need 2 to 5 LPM. You must map these thresholds accurately. Oversizing the LPM creates excess noise. Undersizing it starves the medical device of necessary power.
Pressure delivery, measured in PSI or Bar, presents another complex variable. Bench-test specifications rarely match real-world clinical performance. Backpressure fundamentally alters how a pump behaves. Valves, HEPA filters, lengthy tubing, and the patient interface all create resistance. This resistance forces the compressor to work harder. It reduces the actual LPM delivered to the patient. You must calculate total system resistance before selecting a pump.
Reading the pressure-flow trade-off curve correctly ensures clinical efficacy. Manufacturers provide these curves to illustrate performance under load.
Identify Maximum Pressure: Locate your highest expected system backpressure on the X-axis.
Verify Flow Rate: Trace up to the curve, then over to the Y-axis to find the resulting LPM.
Factor in Wear: Subtract 10-15% from this flow rate to account for normal seal wear over years of operation.
Assess Thermal Limits: Ensure this operating point falls within the continuous-use zone of the manufacturer's thermal specifications.
Following these steps helps you avoid over-specifying, which needlessly increases heat, or under-specifying, which risks patient safety.
Successful mechanical integration drives the entire medical device design process. When evaluating an OEM compressor head, you must look beyond basic pneumatic output. Physical form factor, thermal dynamics, and acoustic footprints dictate whether a pump fits your chassis.
Portable medical devices demand extreme miniaturization. Home healthcare trends require engineers to pack powerful compressors into highly confined spaces. Every cubic millimeter matters. Standard industrial pumps simply will not fit. You need custom-cast aluminum components or advanced composite housings to reduce overall weight. The challenge lies in shrinking the footprint without compromising the stroke length required for high-flow applications.
Thermal management becomes brutally difficult in closed chassis environments. Oil-free pumps rely on friction-based PTFE seals. These seals generate significant heat. In a tightly enclosed ventilator casing, ambient temperatures rise rapidly. High temperatures degrade bearings and reduce the lifespan of the motor windings. You must design adequate cooling pathways. Consider forced-air cooling using auxiliary fans, or strategically placed ventilation louvers. Directing the compressor's own intake air across the motor housing can also improve thermal dissipation.
Acoustic comfort is vital in clinical and homecare settings. You must specify a low vibration compressor to maintain a healing environment. Hospitals target noise levels below 50 decibels (dB) for bedside equipment. Achieving this requires addressing both airborne noise and structural resonance.
Use multi-chamber intake mufflers to silence the rushing air.
Implement thick, elastomeric isolation mounts to decouple the pump from the rigid device chassis.
Specify precision-balanced eccentric bearings to minimize wobbling forces during high-speed rotation.
Power and electrical integration dictate global usability. Alternating Current (AC) motors provide robust power for stationary hospital equipment. However, they require different configurations for 120V (North America) and 230V (Europe) markets. Brushless Direct Current (BLDC) motors offer a superior alternative. They accommodate variable voltage inputs and operate highly efficiently on battery power. BLDC motors also eliminate carbon brush dust, maintaining internal device cleanliness. They represent the optimal choice for portable, battery-operated medical devices.
Medical devices must function flawlessly for years. Evaluating lifecycle reliability extends far beyond the initial bench test. Engineers must scrutinize the Mean Time Between Failures (MTBF). Continuous operation longevity separates standard commercial pumps from truly medical-grade components. A reliable oxygen concentrator pump should easily surpass 10,000 to 15,000 hours of continuous operation before requiring major service.
The lifespan of oil-free compressor pumps for medical devices depends entirely on their wear components. Since we cannot use liquid lubricants, we rely on advanced materials.
Polytetrafluoroethylene (PTFE) cup seals form the heart of these pumps. These self-lubricating seals glide against anodized aluminum or stainless steel cylinder walls. Over thousands of hours, the PTFE slowly wears away. Flapper valves, typically made from high-grade Swedish stainless steel, flex millions of times and eventually experience metal fatigue. Bearings bear the brunt of rotational stress and high temperatures. Understanding the degradation curve of these specific parts allows engineers to set accurate preventative maintenance schedules.
Field serviceability dramatically impacts end-user satisfaction. When a pump eventually requires maintenance, how easily can technicians service it? Some manufacturers build sealed, disposable units. Once the PTFE seal wears out, you must discard the entire pump. This approach creates massive electronic waste and frustrates hospital biomedical technicians.
Superior designs prioritize fast, field-level rebuilds. A well-engineered pump allows a technician to remove the cylinder head, replace the cup seal, and swap out the flapper valves in under twenty minutes. This modularity minimizes device downtime. It keeps critical life-saving equipment functioning continuously in the clinical environment.
Common Mistake: Never ignore the ambient environment in your lifecycle testing. A pump rated for 15,000 hours at 20°C might only last 5,000 hours if trapped inside a 45°C unventilated medical device chassis.
Your pump is only as reliable as the company manufacturing it. Choosing the right partner requires rigorous vetting. You cannot simply order components from a catalog. You need a highly collaborative engineering partner capable of meeting strict medical industry demands.
First, verify their Quality Management Systems (QMS). A reputable oil-free medical pump supplier must operate under ISO 13485 or an equivalent stringent framework. This certification guarantees full traceability of materials. If a bearing fails in the field, an ISO 13485 compliant supplier can trace that specific batch back to the original steel foundry. They maintain rigorous documentation, which you will need for your own regulatory submissions.
Next, assess their customization capabilities. Off-the-shelf SKUs rarely fit complex medical devices perfectly. An ideal supplier demonstrates a willingness to modify their base designs. They should easily adjust the motor windings to match your specific battery voltage. They should offer custom mounting brackets to fit your unique chassis footprint. They should happily alter the eccentric stroke length to dial in your exact flow-pressure requirements.
Finally, evaluate their prototyping agility and supply chain transparency. Medical device development moves rapidly. You need initial testing units delivered in weeks, not months. Ask hard questions about their component sourcing. Do they manufacture their own motors, or assemble outsourced parts? Vertical integration generally yields shorter lead times and higher quality control.
Evaluation Area | Standard Commercial Supplier | Medical-Grade Supplier |
|---|---|---|
Quality Certification | ISO 9001 (General Manufacturing) | ISO 13485 (Medical Devices) |
Material Traceability | Batch-level only | Individual component traceability |
Customization | Forces standard catalog SKUs | Modifies stroke, windings, and mounts |
Cleanroom Assembly | Standard factory floor | ISO Class 7 or 8 cleanroom environments |
Testing Documentation | Basic flow-pressure sheet | Custom thermal and acoustic test reports |
Your immediate next step involves requesting application-specific performance curves. Send them your expected backpressure and voltage parameters. Evaluate how quickly and accurately their application engineers respond to your technical inquiries.
Successful medical device design requires addressing pneumatic challenges from day one. You must seamlessly integrate airflow performance, acoustic dampening, and strict contamination control into your earliest CAD models. Overlooking the complexities of backpressure or thermal management leads to costly redesigns and regulatory delays. By strictly specifying self-lubricating, oil-free technologies, you guarantee patient safety and system reliability.
We encourage design engineers to move rapidly from datasheet reviews to functional prototyping. Paper specifications can never fully replicate the unique internal aerodynamics of your specific chassis. Obtain physical samples. Run them under your maximum expected thermal loads.
Do not attempt to solve these pneumatic puzzles alone. Consult directly with dedicated application engineers. Request custom flow-pressure curve analyses tailored to your device's exact clinical parameters. Secure your sample units today and begin the rigorous testing required to bring your life-saving medical device to market.
A: It utilizes self-lubricating materials, primarily advanced PTFE compounds, for internal seals and bearings. This completely eliminates the need for oil sumps or liquid lubricants. By removing oil from the mechanical process, it ensures zero hydrocarbon carryover into the air stream, meeting strict medical purity standards.
A: Choose based on your specific flow and pressure needs. Piston compressors deliver much higher pressure and airflow capabilities, ideal for robust ventilators. Diaphragm compressors provide lower pressure but offer ultimate leak-tightness and exceptionally quiet operation, making them perfect for portable or bedside bedside oxygen devices.
A: Acceptable noise levels typically range between 40 and 55 dB, depending heavily on the device's proximity to the patient. Achieving this requires specifying a highly balanced, low vibration compressor design and utilizing proper elastomeric acoustic dampening mounts inside the device chassis.
A: Yes. Reputable medical pump suppliers frequently customize their standard designs. They integrate highly efficient brushless DC (BLDC) motors for battery operation, cast lightweight aluminum alloys to reduce weight, and design bespoke mounting brackets to fit tightly constrained portable medical equipment.
