The Impact of Valve Reed Deformation in Compressor Heads on Oxygen Concentrator Performance

1. Introduction

Pressure Swing Adsorption (PSA) oxygen concentrators depend on compressed air to separate oxygen from nitrogen. The compressor serves as the heart of the system, continuously supplying pressurized air to the molecular sieve beds.

Within the compressor head, valve reeds function as one-way valves that control the intake and discharge process. Their sealing performance directly affects compression efficiency, airflow rate, and oxygen production quality.

Even minor deformation of a valve reed can negatively impact the entire oxygen generation process.

2. Function of Valve Reeds in Compressor Heads

Valve reeds are typically made from high-strength stainless steel and are installed on the valve plate assembly.

Their primary functions include:

- Allowing air intake during the suction stroke

- Preventing reverse airflow during compression

- Ensuring efficient discharge of compressed air- Maintaining stable operating pressure

Under normal conditions, the valve reed opens and closes thousands of times per minute. Long-term fatigue, overheating, contamination, or manufacturing defectsmay eventually cause deformation or lifting of the reed.

3. Consequences of Valve Reed Deformation

3.1 Reduced Compression Efficiency

When a valve reed no longer seals tightly against the valve plate, compressed air can leak back into the cylinder chamber.

This leakage reduces the effective compression ratio and lowers the overall volumetric efficiency of the compressor.

3.2 Lower Oxygen Concentration

PSA oxygen concentrators require sufficient air pressure to allow molecular sieves to effectively adsorb nitrogen.

Insufficient pressure caused by valve leakage may result in:

- Reduced nitrogen adsorption efficiency

- Lower oxygen purity

- Longer oxygen generation cycles

In severe cases, oxygen concentration may fall below the required medical or industrial standards.

4. Impact on Oxygen Concentrator Reliability

For oxygen concentrator manufacturers and service providers, valve reed failure can lead to:

- Declining oxygen output

- Customer complaints

- Increased maintenance costs

- Reduced equipment lifespan

- Higher warranty claims

Therefore, compressor head quality directly affects the overall reliability of oxygen generation equipment.

5. The Importance of High-Quality Compressor Pump Heads

To minimize the risk of valve reed deformation, compressor heads should feature:

- Precision-machined valve plates

- High-fatigue stainless steel valve reeds

- Optimized airflow design

- Strict leakage testing procedures

- Long-life piston and cylinder assemblies

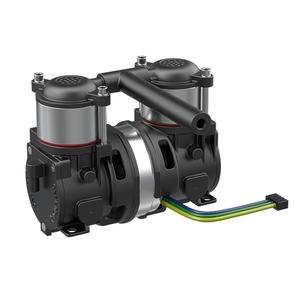

At OUHANG, our oil-free compressor pump heads are engineered specifically for oxygen concentrators, medical devices, and PSA gas generation systems.

Key advantages include:

- Stable airflow output

- Low operating temperature

- High durability valve systems

- Low noise performance

- Long service life under continuous operation

By utilizing premium materials and advanced manufacturing technology, our compressor heads help maintain consistent oxygen concentration and improve system reliability.
